MEAN WELL RQ-65D AC-DC Power Supply Quad Output 5V 12V 24V 12V 4 Amp

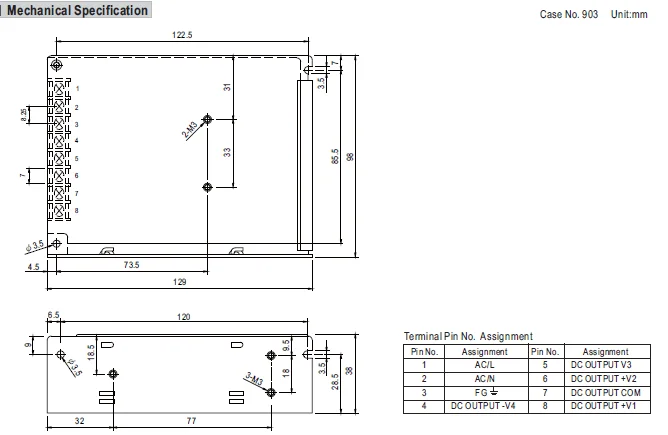

MEAN WELL RQ-65D AC-DC Power Supply Quad Output 5V 12V 24V 12V 4 Amp: Computers & Accessories. Buy MEAN WELL RQ-65D AC-DC Power Supply Quad Output 5V 12V 24V 12V 4 Amp: Uninterruptible Power Supply (UPS) - ✓ FREE DELIVERY possible on eligible purchases. 68W AC/DC enclosed switching power supply +5Volts 4Amps (channel 1) +12Volts 1.5Amps (channel 2) +24Volts 1.0Amps (channel 3) -12Volts 0.5Amp (channel 4) specifications: size (L x W x H) (inches): 5.1 x 3.9 x 1.5 ripple and noise (mV p-p): 80 load regulation: 0.5 percent line regulation: 0.5 percent input: 88-246vac 47-63hz 5G vibration able to withstand 300VAC surge input for 5 seconds short-circuit/overload/overvoltage protection 3-year warranty certifications: UL/cul/TUV/CE/CB for more 12 Volt power supplies. Detailed specifications: primary output voltage (VDC): 5 output current (a): 4 maximum output power (W): 68 family: rq-65 additional output voltages (VDC): 12 | 24 | -12 input voltage (VAC): 88 to 264 input frequency: 47 to 63 maximum input current (a): 2 output connector Type: screw terminal block number of outputs: 4 product Type: AC to DC power supply efficiency ( percent ): 78 minimum isolation voltage: 3000V operating temperature-min (CEL): -25 operating temperature-max (CEL): 70 Length (inch): 5.1 width (inch): 3.9 height (inch): 1.5 agency approvals: UL/cul/TUV/CE/CB Type: auto switching style: multiple output. 。 。 。

MEAN WELL RQ-65D AC-DC Power Supply Quad Output 5V 12V 24V 12V 4 Amp

MEAN WELL RQ-65D AC-DC Power Supply Quad Output 5V 12V 24V 12V 4 Amp

MEAN WELL RQ-65D AC-DC Power Supply Quad Output 5V 12V 24V 12V 4 Amp,24V 12V 4 Amp MEAN WELL RQ-65D AC-DC Power Supply Quad Output 5V 12V,Buy MEAN WELL RQ-65D AC-DC Power Supply Quad Output 5V 12V 24V 12V 4 Amp: Uninterruptible Power Supply (UPS) - ✓ FREE DELIVERY possible on eligible purchases, Shopping with Unbeatable Price Online fashion store Dealighted People Powered Shopping. Quad Output 5V 12V 24V 12V 4 Amp MEAN WELL RQ-65D AC-DC Power Supply.

MEAN WELL RQ-65D AC-DC Power Supply Quad Output 5V 12V 24V 12V 4 Amp
MEAN WELL RQ-65D AC-DC Power Supply Quad Output 5V 12V 24V 12V 4 Amp

MEAN WELL RQ-65D AC-DC Power Supply Quad Output 5V 12V 24V 12V 4 Amp


Translate »

MEAN WELL RQ-65D AC-DC Power Supply Quad Output 5V 12V 24V 12V 4 Amp


Buy MEAN WELL RQ-65D AC-DC Power Supply Quad Output 5V 12V 24V 12V 4 Amp: Uninterruptible Power Supply (UPS) - ✓ FREE DELIVERY possible on eligible purchases, Shopping with Unbeatable Price Online fashion store Dealighted People Powered Shopping.
